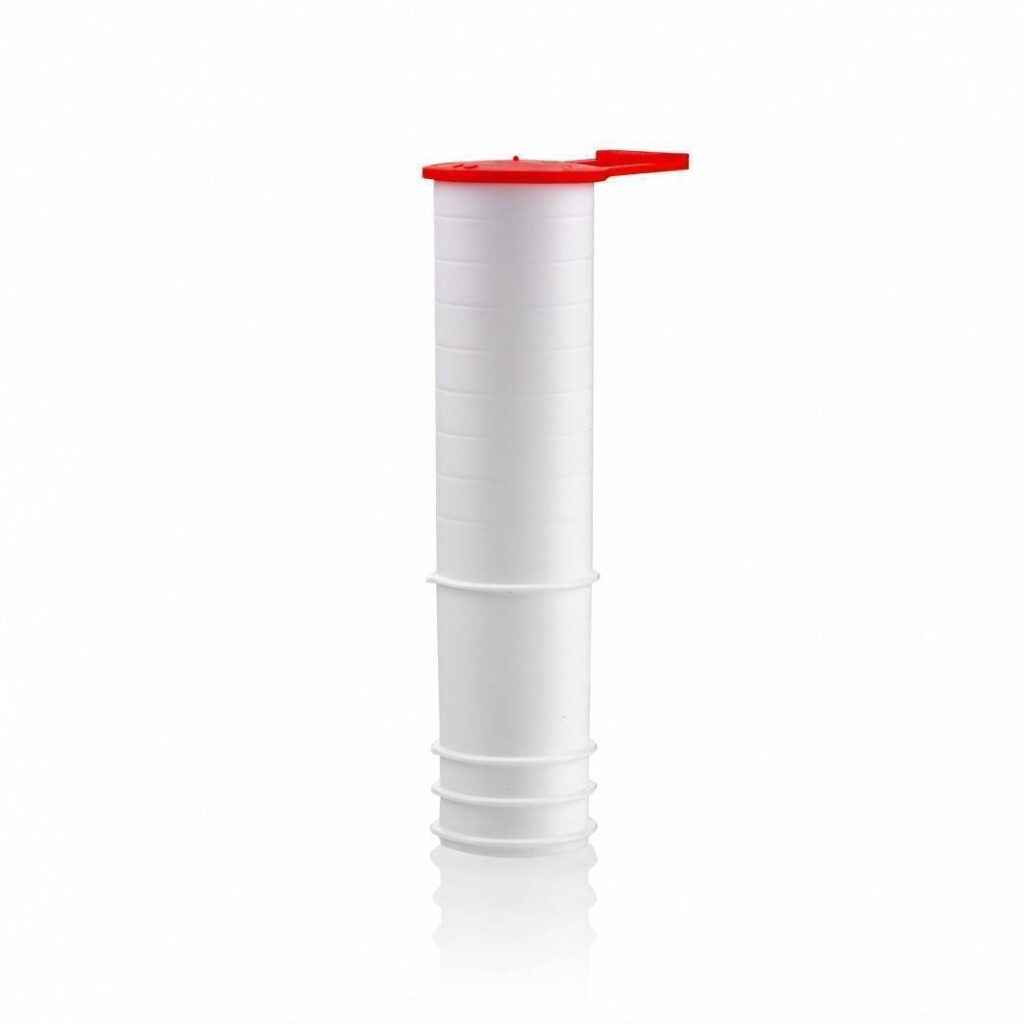

Hygro-i2 Hole Liners and Caps for use with Tramex Hygro-i2 relative humidity probes. These 19mm (3/4 inch) hole liners are used to perform ASTM F2170 in situ relative humidity testing of concrete floors and slabs using a 3/4 inch drill bit.

The standard hole liners are 3 inches long and are available in packs of 100. The extra long hole liners are 4.72 inches long and are available in packs of 50.

Features

• Designed for use with the reusable Tramex Hygro-i2 relative humidity probe (HIPP)
• 19mm (3/4 inch) diameter to suit a standard 3/4 inch drill bit
• Sealing cap included with each liner
• Standard 3 inch length (RHHL100) and extra long 4.72 inch length (RHHL50X) available
• Enables compliant in situ RH testing to ASTM F2170

Applications

• In situ relative humidity testing of concrete floors and slabs to ASTM F2170
• Concrete moisture inspection prior to floor covering, coating or flooring installation

Specifications

• Standard hole liners, 3 inch (76mm) long, pack of 100 sets
• Hole liner diameter: 19mm (3/4 inch)
• Standard length: 3 inches, pack of 100 sets (RHHL100)
• Extra long length: 4.72 inches (120mm), pack of 50 sets (RHHL50X)
• Compatible probe: Tramex Hygro-i2 (HIPP)
• Extra long liners are used with the HI-EXL long insertion/retrieval tool
