Accessory Pack for performing the in situ relative humidity test in concrete as per ASTM F2170, for use with the Tramex CMEX5, MEX5 and Feedback Datalogger DL-RHTX. The older AP-F2170 version suits the earlier CMEX2 and MRH3 meters.

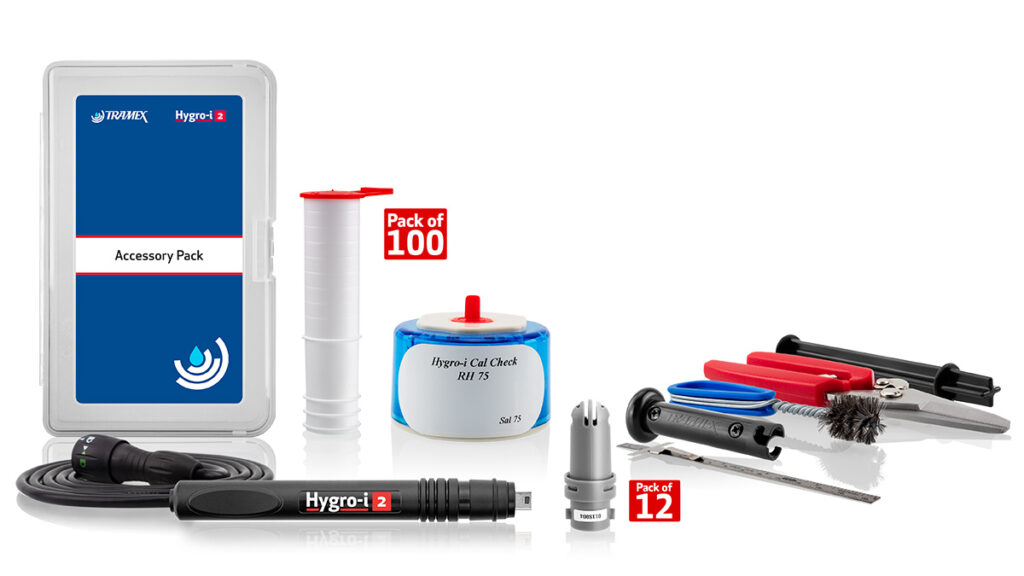

The pack consists of:

• 2 reusable Hygro-i2 probes
• 1 interface cable
• 1 calibration salt check
• 100 x 3/4 inch (19mm) hole liners

Features

• Everything needed to add compliant ASTM F2170 in situ RH testing capability to a compatible Tramex meter or datalogger
• 12 reusable Hygro-i2 probes provide the lowest cost per ASTM F2170 test
• Includes RHIE2 electronic interface cable to connect probes to the meter
• Includes SAL75 calibration salt check for verifying probe calibration
• Includes 100 x 19mm (3/4 inch) hole liners with caps

Applications

• In situ relative humidity testing of concrete floors and slabs to ASTM F2170
• Flooring, coating and concrete inspection
• Water damage restoration and indoor air quality assessment

Specifications

• Contents: 12 x Hygro-i2 reusable RH probes, 1 x interface cable, 1 x calibration salt check, 100 x 19mm (3/4 inch) hole liners
• Compatibility (AP-F2170-B): Tramex CMEX5, MEX5 and Feedback Datalogger DL-RHTX
• Compatibility (AP-F2170, older version): Tramex CMEX2 and MRH3
