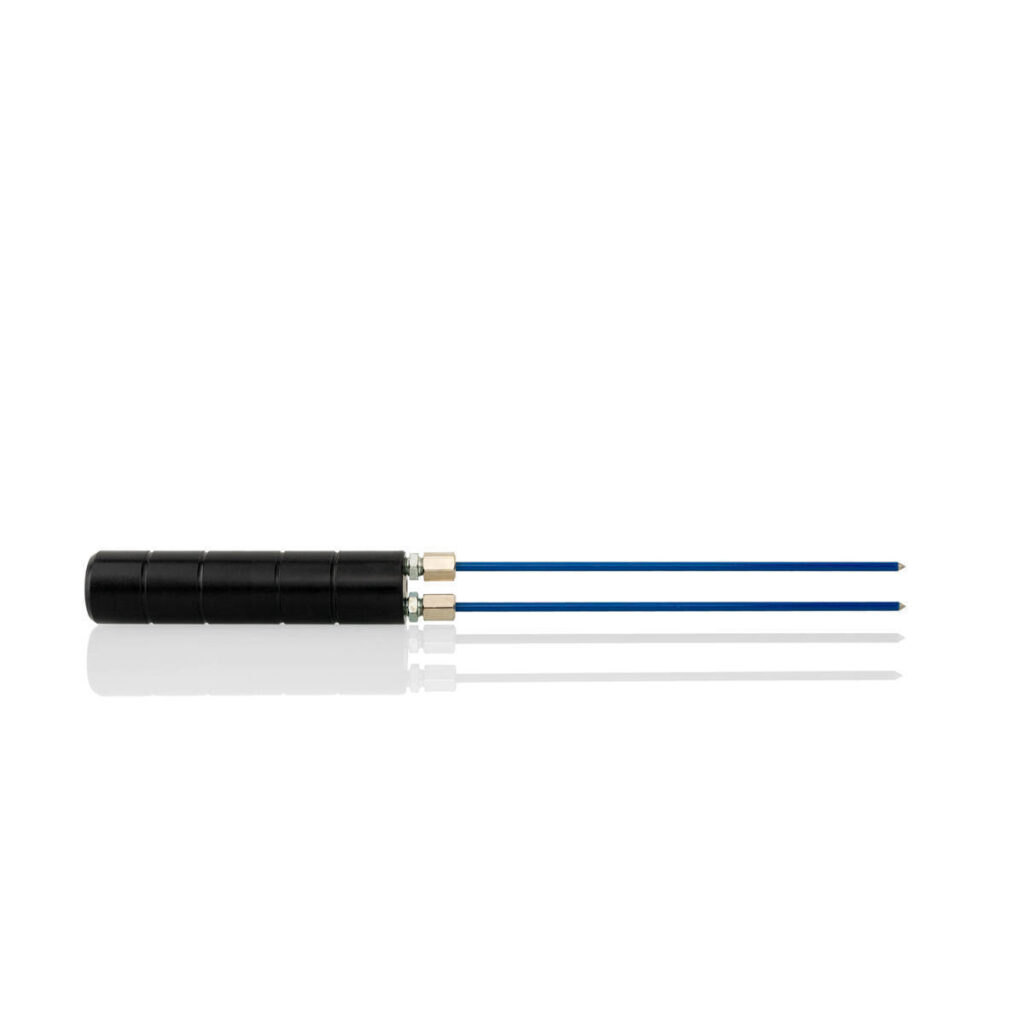

The Tramex Heavy-Duty Electrode with cable and 7.8″ (200mm) long, insulated pins is designed for use with the Tramex CMEX5 Concrete Moisture Encounter and MEX5 Moisture Encounter. The long insulated pins allow deep penetration moisture measurement, making the probe ideal for testing through insulation, roofing build-ups and thick building assemblies where readings are needed at depth. Because the pins are insulated along their shaft, readings are taken only at the pin tips, allowing moisture to be located at a specific depth.

The current HH14SP200-B uses the B-type connector fitted to the latest Tramex 5 series meters. The older HH14SP200 has a phono (jack) connector for legacy Tramex meters such as the CMEX2, MRH3 and PTM.

Features

• Heavy-duty hand-held electrode with 7.8″ (200mm) long insulated pins
• Insulated pin shafts confine the reading to the pin tips for depth-specific measurement
• Supplied complete with connection cable and pins
• Spare 7″ pins available as SP200 (pack)
• Included in Tramex kits: WDIK, WDMK, RIK, RMK, BSIZK, BSIK and BSMK

Compatible Instruments

• HH14SP200-B: Tramex Concrete Moisture Encounter CMEX5 and Moisture Encounter MEX5
• HH14SP200 (older phono version): legacy Tramex meters with phono socket, including CMEX2, MRH3 and PTM

Specifications

• Pin length: 7.8″ (200mm), insulated
• Supplied with cable and pins
• No further specifications are published on the product page
