Description

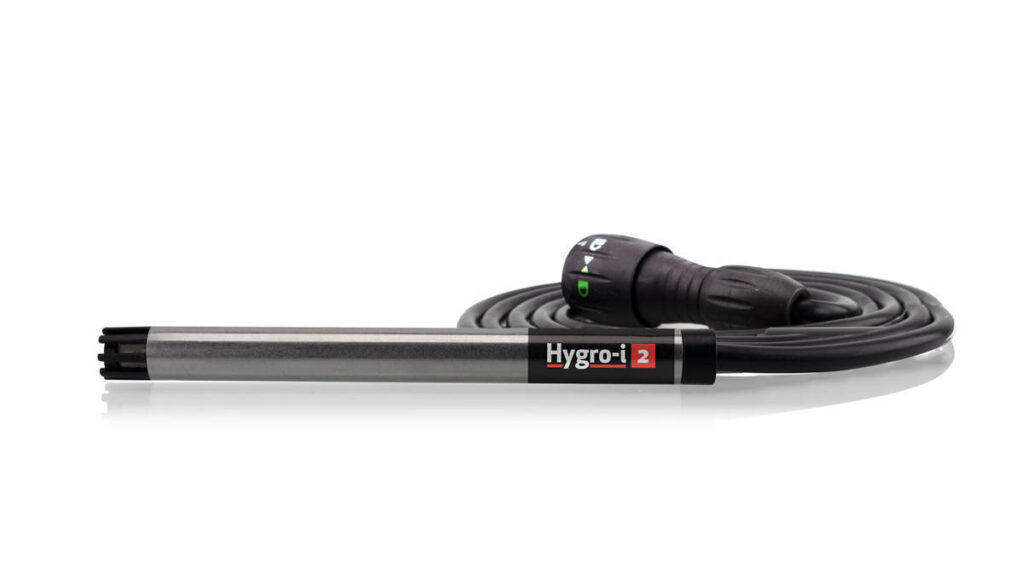

The Tramex Relative Humidity Probes are the most advanced, resilient and reusable RH probes on the market today, allowing the user to evaluate moisture conditions within the building structure. The different lengths and thicknesses make them ideal for use by flood and water damage restoration as well as building survey professionals. The probes, which house the latest Hygro-i2 technology, measure relative humidity, temperature, dew point temperature and grains per pound humidity ratio.
The probes can be used for the evaluation of moisture conditions of wall and cavity structures as well as ambient air conditions within the building envelope. The speed and accuracy of the Tramex Hygro-i2 probes set them apart from all other RH probes on the market.
Used in conjunction with the Tramex CMEX5 and MEX5 non-destructive moisture meters or the Feedback Datalogger DL-RHTX, the probe provides measurements of relative humidity, temperature, dew point and grains per pound in structural materials such as concrete flooring and walls, as well as the ambient conditions within the building envelope, all shown simultaneously on one clear display. The probes are reusable and calibration checks can be carried out using the SAL75 calibration check salts.
Features
- Fast acclimation and temperature response time
- Proven robustness, durable and reusable
- Best in class accuracy and reliability, even at high RH above 90%
- Measures in situ relative humidity and ambient RH, temperature, dew point temperature and grains per pound
- Relative humidity range: 0% to 100%
- Temperature range: -4 to 158 degrees F (-20 to 70 degrees C)
- Best temperature accuracy of plus or minus 0.1 degrees F over the full range
Applications
- Ambient relative humidity and temperature measurement within the building envelope
- Evaluation of moisture conditions in wall and cavity structures
- Flood and water damage restoration
- Building surveys and inspections
Specifications
Relative Humidity Sensor
| Parameter | Value |
|---|---|
| Range | 0 to 100% RH |
| Accuracy | 0% to 99% RH, ±2.0% RH (at 77°F / 25°C) |
| Resolution | 0.1% over the complete range |
| Drift | Less than 0.25% RH per year |
Temperature Sensor
| Parameter | Value |
|---|---|
| Range | -4°F to 158°F (-20°C to 70°C) |
| Accuracy | ±0.1°F (±0.1°C) over the full range |
| Sensor protection | PTFE film protects sensor opening from water and dust |
| Drift | Less than 0.04°F (0.03°C) per year, NIST traceable |
Other
- Probe length: 4.5 inches (110mm)
- Compatibility: Tramex CMEX5, MEX5 and Feedback Datalogger DL-RHTX (older RHP-SW version suits earlier meters such as CMEX2 and MRH3)
Standards Referenced
- NIST traceable temperature calibration
- Supports ASTM F2170 workflows as part of the Tramex RH testing system
