Description
The Tramex Building Survey Inspection Tech Kit is a compact kit comprising the Moisture Encounter MEX5 and a pin electrode. It allows for both non-destructive and pin moisture content readings of drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates, roofing and numerous other building materials.
The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials. The MEX5 features a dual depth measuring range, with deep depth penetration of up to 1 1/4″ (30mm) and shallow depth penetration of up to 3/8″ (9mm). The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.
The MEX5 also features a built-in hygrometer for ambient conditions and psychrometric values, an infrared surface thermometer, and works with the hand-held probe for wood, drywall and WME readings.
Bluetooth connectivity to the Tramex Meters App allows visualization of readings, moisture mapping and data reporting to mobile devices. Users can GeoTag test results, create, save and share photos, reports and charts, and view the meter screen on a phone when extending to hard to reach places.
The kit comes with a protective easy-travel case.
Features
- Non-destructive and pin-type moisture testing in one compact kit
- Dual-depth measurement: shallow signal up to 3/8″ (9mm), deep signal up to 1 1/4″ (30mm)
- Ambient relative humidity, temperature, dew point and grains per pound readings
- NDT wood moisture content 0 to 30%
- Pin wood moisture content 6 to 46% (approx 50% MC)
- Pin drywall moisture content 0 to 8.5%
- Built-in infrared surface temperature measurement
- Enthalpy and psychrometric values
- Accompanying Tramex Meters App with Bluetooth connectivity
Applications
- Building surveys and building inspections
- Moisture testing of drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing
- Moisture mapping and reporting of building materials
- Ambient condition and surface temperature assessment

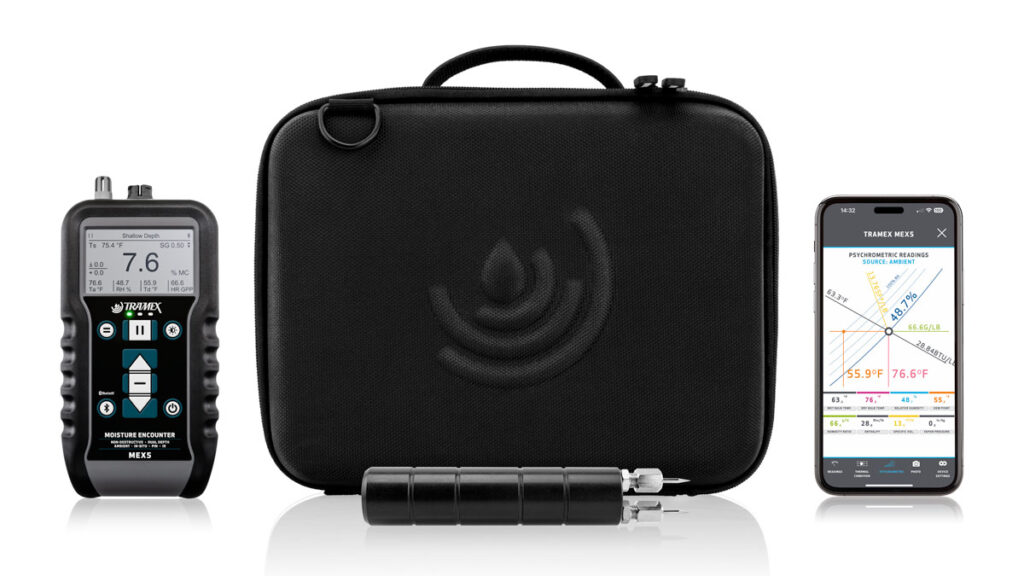

Kit Contents
- Moisture Encounter MEX5
- Heavy-duty pin-type electrode
- Protective easy-travel caseg
Specifications
Moisture Encounter MEX5
| Parameter | Value |
|---|---|
| Size | 7.1″ x 3.4″ x 1.6″ (180mm x 85mm x 40mm) |
| Weight | 10.22oz (290g) |
| Construction | ABS body |
| Power | 2 x AA LR6 alkaline (included) |
| Display | Digital 2.3″ x 1.4″ (58mm x 35mm) |
| Depth of penetration | Shallow signal: up to 3/8″ (9mm); Deep signal: up to 1 1/4″ (30mm) |
Measuring Range of Moisture Encounter MEX5
| Parameter | Range |
|---|---|
| NDT moisture content for wood | 0 to 30% MC |
| NDT comparative for building materials | 0 to 100 |
| Pin % MC wood | 6 to approx 50% MC |
| Pin % MC drywall | 0 to 8.5% MC |
| Relative humidity (with optional Hygro-i2 probe) | 0 to 99%RH, ±2% at 25°C (77°F) |
Kit Specification
| Parameter | Value |
|---|---|
| Size | 13.8″ x 9.1″ x 3.5″ (350mm x 230mm x 90mm) |
| Weight | 3.4 lbs (1.55kg) |
| Power | 2 x AA LR6 alkaline (included) |
