The Tramex Building Survey Master Kit is the ultimate kit for non-destructive testing of moisture content and humidity conditions in drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates, roofing, numerous other building materials and air spaces.

The RWS Roof and Wall Scanner allows instant, non-destructive evaluation of moisture conditions deep within wall and roofing systems.

The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials. The MEX5 features a dual depth measuring range, with deep depth penetration of up to 1 1/4″ (30mm) and shallow depth penetration of up to 3/8″ (9mm). The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.

The MEX5 also features a built-in hygrometer for ambient conditions and psychrometric values, an infrared surface thermometer, and incorporates the external RH probe for in situ equilibrium RH readings, as well as the pin probe for wood, drywall and WME readings. The insulated 200mm (7.8″) pins and narrow 127mm (5″) RH probe allow for deep wall cavity and insulation pin probing.

Bluetooth connectivity to the Tramex Meters App allows visualization of readings, moisture mapping and data reporting to mobile devices. Users can GeoTag test results, create, save and share photos, reports and charts, and view the meter screen on a phone when extending to hard to reach places.

The kit comes with extension handles and a protective heavy-duty carrying case with die-cut foam lining.

Features

• Deep non-destructive scanning of wall and roofing systems with the RWS (up to 4″ / 100mm)
• Dual-depth measurement (MEX5): shallow signal up to 3/8″ (9mm), deep signal up to 1 1/4″ (30mm)
• NDT wood moisture content 0 to 30%; comparative scale 0 to 100
• Pin wood moisture content 6 to approx 50% MC; pin drywall 0 to 8.5% MC
• Built-in hygrometer for ambient conditions and psychrometric values
• Built-in infrared surface thermometer
• In situ equilibrium RH readings with external RH probe
• Deep wall cavity and insulation probing with 200mm insulated pins and narrow RH probe
• Extension handles included
• Accompanying Tramex Meters App with Bluetooth connectivity

Applications

• Surveying and inspecting moisture in buildings
• Non-destructive moisture evaluation deep within wall and roofing systems
• Moisture testing of drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing
• In situ equilibrium RH testing of materials and air spaces
• Deep wall cavity and insulation moisture probing

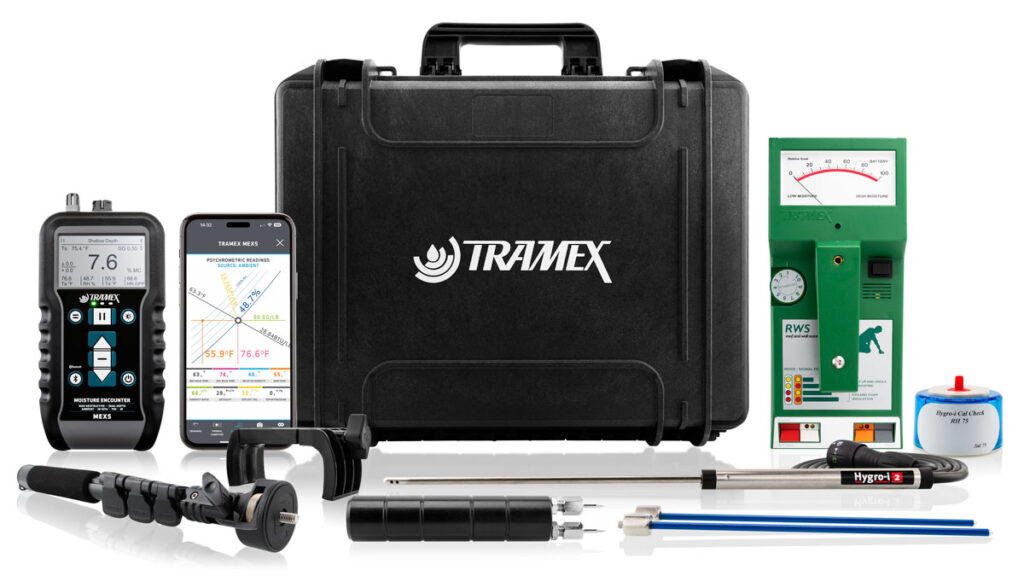

Kit Contents

1. RWS Roof and Wall Scanner
2. Moisture Encounter MEX5
3. Heavy-duty pin-type electrode
4. 7.8″ (200mm) insulated pins for in-depth penetration using pin probe
5. Short narrow wand relative humidity probe
6. Calibration check salts for relative humidity probe
7. Extension handle
8. Protective heavy-duty carrying case with die-cut foam lining

Specifications

Roof and Wall Scanner (RWS)

Moisture Encounter MEX5

Measuring Range of Moisture Encounter MEX5

Relative humidity sensor: range 0 to 100%RH; accuracy ±1.5%RH (0 to 80%RH) and ±2.0%RH (80 to 99%RH) at 25°C (77°F); resolution 0.1%; drift under 0.25%RH per year.

Temperature sensor: range -4°F to 158°F (-20°C to 70°C); accuracy ±0.1°F (±0.1°C); PTFE film sensor protection; drift under 0.04°F (0.03°C) per year.

Kit Specification
