The Concrete Determinator Inspector Kit is the kit for performing the Tramex Complete Concrete Moisture Test System, providing instant and precise testing of both surface and in-body concrete moisture content in floors and slabs using a unified gravimetric-based testing method, with Bluetooth and the accompanying Tramex Meters App.

The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4 inches (100 mm), with a probe diameter of 3/4 inch (19 mm).

The CMEX5 also incorporates reusable plug-in Hygro-i2 RH probes for in-situ relative humidity testing of concrete as per ASTM F2170. An infrared surface thermometer gives surface temperature and dew point conditions when used in conjunction with the CMEX5 hygrometer.

The kit comes in a protective heavy-duty carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts, and see your meter screen on your phone when using the CMEX5 extension handle.

A popular complementary product is the AP-F2170-B ASTM F2170 Accessory Pack for RH testing, which includes reusable Hygro-i2 probes, hole liners and tools.

Features

• Complete concrete moisture test system in one kit
• Non-destructive quantitative surface testing with the CMEX5 digital meter
• Reusable, extendable Determinator probe for in-situ moisture content readings to 4 inches (100 mm)
• In-situ relative humidity testing per ASTM F2170 with the reusable Hygro-i2 probe
• Concrete moisture content range 0 to 6.9%
• CM Equivalent scales for concrete (0 to 4.3) and anhydrite (0 to 2.7); gypsum reference 0 to 12
• Ambient and in-situ relative humidity, temperature, dew point and grains per pound readings
• Infrared surface thermometer for surface temperature and dew point conditions
• Extension handle included
• Bluetooth connectivity to the free Tramex Meters App (Android and iOS)

Applications

• Complete concrete moisture inspection of floors and slabs
• Flooring and coatings pre-installation testing and compliance testing (ASTM F2170, ASTM F2659)
• Concrete surveying and moisture investigation, determining whether moisture is at the surface or within the slab

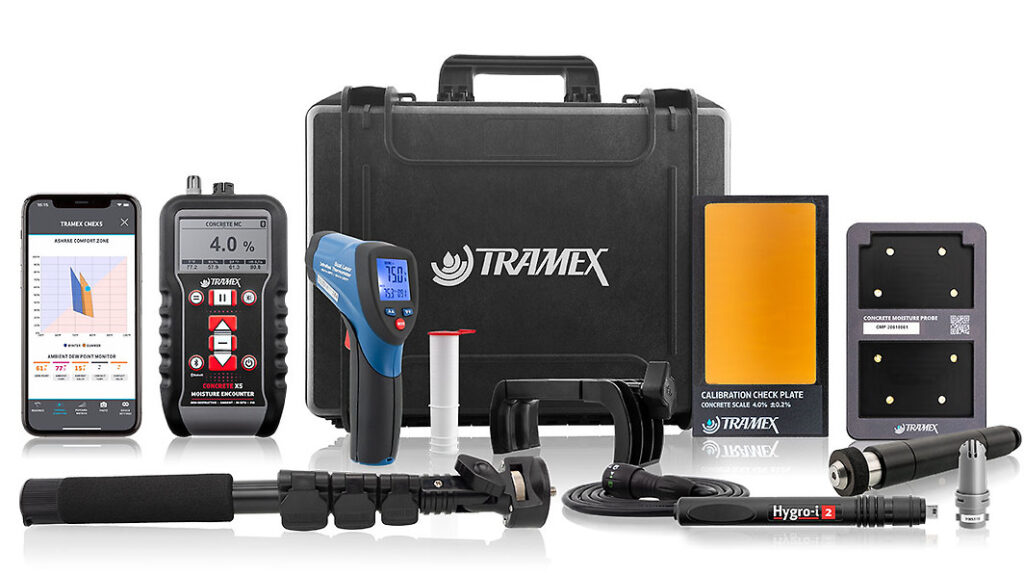

Kit Contents

1. Concrete Moisture Encounter X5 – CMEX5
2. Concrete Moisture Determinator Probe
3. 1 x Hygro-i2 reusable relative humidity probe
4. Calibration Check Plate
5. Infrared Thermometer (IRT2)
6. Hole liners
7. Extension Handle
8. Free Tramex Meters App for Android and iOS (phone not included)
9. Protective heavy-duty carrying case with die-cut foam lining

Specifications

CMEX5 measuring range:

• Depth of penetration in concrete: approx. 3/4 inch (20 mm)
• Moisture content for concrete: 0 to 6.9%
• Comparative for gypsum floor screed: 0 to 12
• CM Equivalent Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
• Reference scale: 0 to 100
• Relative humidity: 0 to 99% (with Hygro-i2 probe, accuracy +/- 2% at 25 C / 77 F)
• Moisture content for wood (with optional wood pin probes): 5 to 30%

Determinator probe measuring range:

• Moisture content for concrete with CMEX5: 0 to 6.9%
• Depth of penetration: 1 1/4 inch probe depth for concrete between 2 and 4 inches; 2 1/4 inch probe depth for concrete between 4 and 6 inches; 3 1/4 inch probe depth for concrete between 6 and 9 inches; 4 1/4 inch probe depth for concrete between 9 and 11 inches

Infrared Thermometer IRT2:

• Temperature range: -58 F to 1202 F (-50 to 650 C)
• Distance to spot ratio: 12:1
• Response time: 150 ms
• Emissivity: digitally adjustable from 0.10 to 1.0
• Diode laser output: <1 mW, wavelength 630 to 670 nm, Class 2 laser product
• Power supply: 9 V battery

Kit specifications:

• Size: 17.1 x 14.2 x 5.5 inches (43.5 x 36 x 14 cm)
• Weight: 7.9 lbs (3.6 kg)
• Power: 2 x AA batteries, 1 x 9 volt PP3 battery

Standards Referenced

• ASTM F2170 (in-situ relative humidity testing of concrete)
• ASTM F2659 (comparative non-destructive testing)
