Description
The Tramex Remote Environmental Monitoring System Xtra Accessory Pack adds more Cloud Sensors to your TREMS project. The AP-TREMS-Xtra comprises 5 CS-RHTX Tramex Cloud Sensors as well as 5 external Relative Humidity probes. These external probes extend the benefits of the remote monitoring system, allowing for in-situ readings within building structures, cavities in walls and ceilings, and in-situ RH readings in concrete.
Multiple Sensors can be used with one Station. Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (deg C and deg F), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station, enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.
Features
- Adds 5 CS-RHTX Cloud Xtra Sensors plus 5 external RH probes to an existing TREMS installation
- In-situ monitoring of relative humidity within wall and ceiling cavities and in concrete
- Ambient monitoring of relative humidity, temperature, dew point and grains per pound / grams per kilo
- Simple registration and on-site set-up via QR code check-in
- Remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform
- Supplied in a heavy duty protective carry case
- No subscription fees, free data

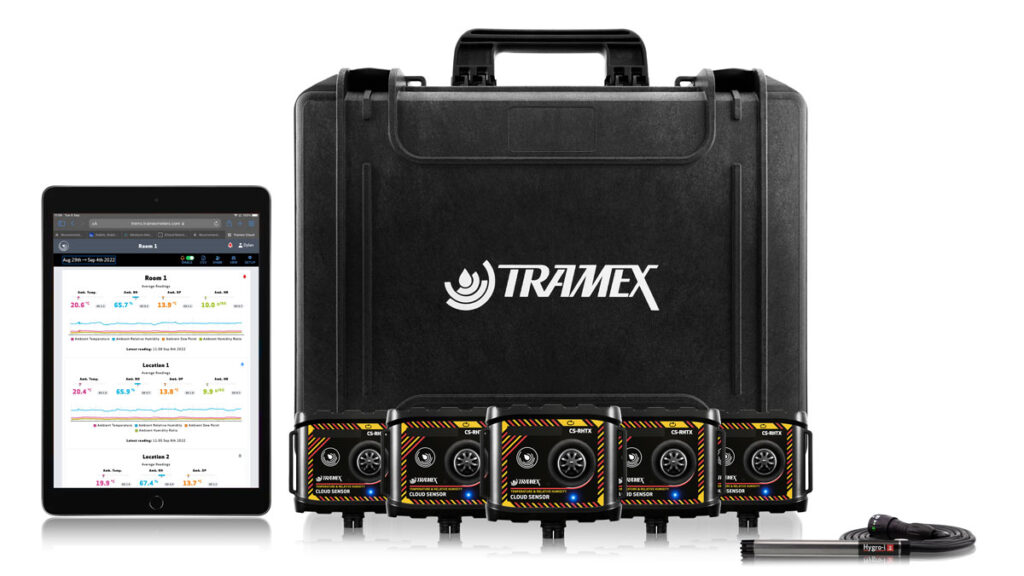

Kit Contents
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x External Relative Humidity probes for in-situ readings
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
Compatible Systems
- Tramex Remote Environmental Monitoring System Xtra (TREMS-Xtra)
- Works with the Tramex Cloud Station (CST-4G) and Tramex Cloud platform
- Compatible with the Tramex Hygrohood (RHIH) for concrete RH testing and the CTP contact
Specifications
Cloud Xtra Sensor – Temperature
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°F, range -4°F to 158°F (±0.1°C, range -20°C to 70°C) |
| Range | -4°F to 158°F (-20°C to 70°C) |
| Sensor Protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.04°F (0.03°C) per year |
Cloud Xtra Sensor – Relative Humidity
| Attribute | Value |
|---|---|
| Accuracy | ±1.5%RH range 0% to 80%RH, ±2.0%RH range 80% to 99%RH (at 77°F/25°C) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Cloud Xtra Sensor – General
| Attribute | Value |
|---|---|
| Transmission Range | Up to 2 miles line-of-sight |
| Communication Frequency | Multiple readings per hour |
| Identification | Items individually coded for ease of install and logging identification |
| Size | 3.94″ x 3.54″ x 1.38″ (100mm x 90mm x 35mm) |
| Weight | 3.53oz (100g) |
| Construction | ABS enclosure |
| Power | Built-in long-life CR123A battery |
| Included | Wall mounting |
External RH Probe – Temperature
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°F, range 68°F to 140°F (±0.1°C, range 20°C to 60°C) |
| Range | -40°F to 257°F (-40°C to 125°C) |
| Sensor Protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.04°F (0.03°C) per year |
External RH Probe – Relative Humidity
| Attribute | Value |
|---|---|
| Accuracy | ±1.5%RH range 0% to 80%RH, ±2.0%RH range 80% to 99%RH (at 77°F/25°C) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Data is stored free of charge for a period of 2 years, after which, following the Tramex data retention policy, it must be downloaded.
Kit
| Attribute | Value |
|---|---|
| Size | 17.1″ x 14.2″ x 5.5″ (43.5cm x 36cm x 14cm) |
| Weight | 7.6lbs (3.56kg) |
| Power | 5 x CR123A 3-volt batteries (included) |
