Description
The Tramex Remote Environmental Monitoring System Accessory Pack adds 5 more Cloud Sensors to your TREMS project.
The AP-TREMS-5 comprises 5 CS-RHTA Tramex Cloud Sensors. Multiple Sensors can be used with one Tramex Cloud Station. Registration and on-site set-up is simple using a QR code check-in procedure.
The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (deg C and deg F), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station, enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.
Features
- Adds 5 CS-RHTA Cloud Sensors to an existing TREMS installation
- Simple registration and on-site set-up via QR code check-in
- Wireless transmission of relative humidity, temperature, dew point and grains per pound / grams per kilo readings
- Remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform
- Long-life batteries in each sensor
- Adverse condition notifications and browser-based monitoring via Tramex Cloud
- No subscription fees, free data
Kit Contents

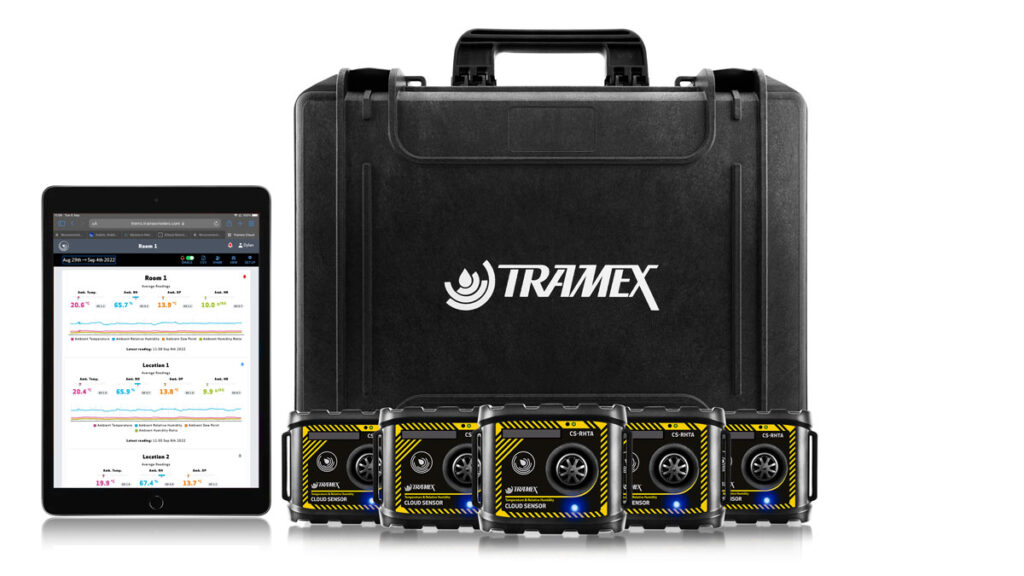

- 5 x CS-RHTA Tramex Cloud Sensors
- Tramex Cloud Software Monitoring platform (Tablet not included)
Compatible Instruments
- Tramex Remote Environmental Monitoring System (TREMS) kits: TREMS-5, TREMS-10
- Works with the Tramex Cloud Station (CST-4G) and Tramex Cloud platform
- CS-RHTA sensors are compatible with the CTP contact temperature probe
Specifications
Temperature Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°F, range -4°F to 158°F (±0.1°C, range -20°C to 70°C) |
| Range | -4°F to 158°F (-20°C to 70°C) |
| Sensor Protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.04°F (0.03°C) per year |
Relative Humidity Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±1.5%RH range 0% to 80%RH, ±2.0%RH range 80% to 99%RH (at 77°F/25°C) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor
| Attribute | Value |
|---|---|
| Transmission Range | Up to 2 miles line-of-sight |
| Communication Frequency | Multiple readings per hour |
| Identification | Items individually coded for ease of install and logging identification |
| Size | 3.94″ x 3.54″ x 1.38″ (100mm x 90mm x 35mm) |
| Weight | 3.53oz (100g) |
| Construction | ABS enclosure |
| Power | Built-in long-life CR123A battery |
| Included | Wall mounting |
Tramex Cloud
| Attribute | Value |
|---|---|
| Frequency | Region specific frequency available |
| Security | WPA2-PSK encryption, no unwarranted telemetry or tracking |
| Size | 5.12″ x 4.53″ x 1.19″ (130mm x 115mm x 30mm) |
| Weight | 9.5oz (270g) |
| Power | Universal AC power adapter |
| Construction | Wall-mountable industrial aluminium |
Data is stored free of charge for a period of 2 years, after which, following the Tramex data retention policy, it must be downloaded.
Kit
| Attribute | Value |
|---|---|
| Size | 17.1″ x 14.2″ x 5.5″ (43.5cm x 36cm x 14cm) |
| Weight | 6.6lbs (3kg) |
| Power | 5 x CR123A 3-volt batteries (included) |
