The Tramex FBSK is a compact kit designed for professionals who depend on accurate, reliable live and logged readings of relative humidity, temperature, dew point and humidity ratio. It monitors both ambient and in-situ conditions in buildings and building materials such as concrete as per ASTM F2170.

The Tramex Feedback Datalogger and Tramex Meters App log up to 100,000 data point entries, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the app you can visualise live readings, thermal conditions and psychrometric charts, as well as create and export spreadsheets, charts and reports. The Feedback Datalogger requires the Tramex Meters App and a compatible iOS or Android mobile device. The kit comes in a protective Tramex Easy-travel case.

Features

• Bluetooth BLE enabled for use with mobile devices
• Up to 100,000 data point entries possible
• Instant set up and start modes
• Used to perform BS 8201, BS 8203, BS 5325 and ASTM F2170
• Ambient and in-situ RH and temperature logging with an intuitive and instructive app interface
• Adjustable interactive chart, spreadsheet, report and easy-export functions
• Connectivity up to 50 metres (165 ft) for highly accessible data downloads

Applications

• Long term ambient and in-situ data logging in buildings
• In-situ relative humidity testing of concrete per ASTM F2170
• Monitoring drying and environmental conditions with live and logged readings

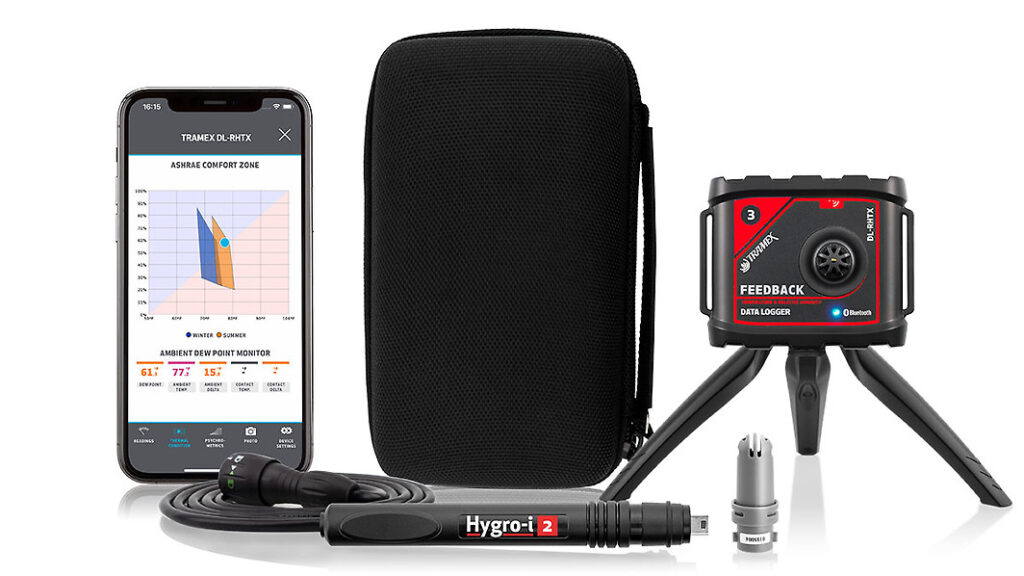

Kit Contents

1. DL-RHTX Data Logger
2. Hygro-i2 probe
3. Wall mounting
4. Tripod stand
5. Protective Tramex Easy-travel case

Specifications

Feedback Datalogger DL-RHTX:

• Memory: 100,000 data point entries (samples of ambient RH and temperature; surface temperature)
• Logging rate: adjustable between 10 minutes and 1 hour
• Transmission range: up to 165 ft (50 m) line of sight
• Bluetooth: BLE Bluetooth Low Energy 4.2 compliant

Relative humidity sensor:

• Range: 0 to 100% RH
• Accuracy: +/- 1.5% RH from 0 to 80% RH, +/- 2.0% RH from 80 to 99% RH (at 77 F / 25 C)
• Resolution: 0.1% over the complete range
• Drift: <0.25% RH per year

Temperature sensor:

• Range: -4 F to 158 F (-20 C to 70 C)
• Accuracy: +/- 0.1 F (+/- 0.1 C) over the range
• Sensor protection: PTFE film protects sensor opening from water and dust
• Drift: <0.04 F (0.03 C) per year

Kit specifications:

• Size: 7.1 x 4.3 x 2 inches (180 x 110 x 50 mm)
• Weight: 10.5 oz (300 g)
• Power: 1 x AA type battery, 1.5 volt

Standards Referenced

• ASTM F2170 (in-situ relative humidity testing of concrete)
• BS 8201, BS 8203, BS 5325
