Description

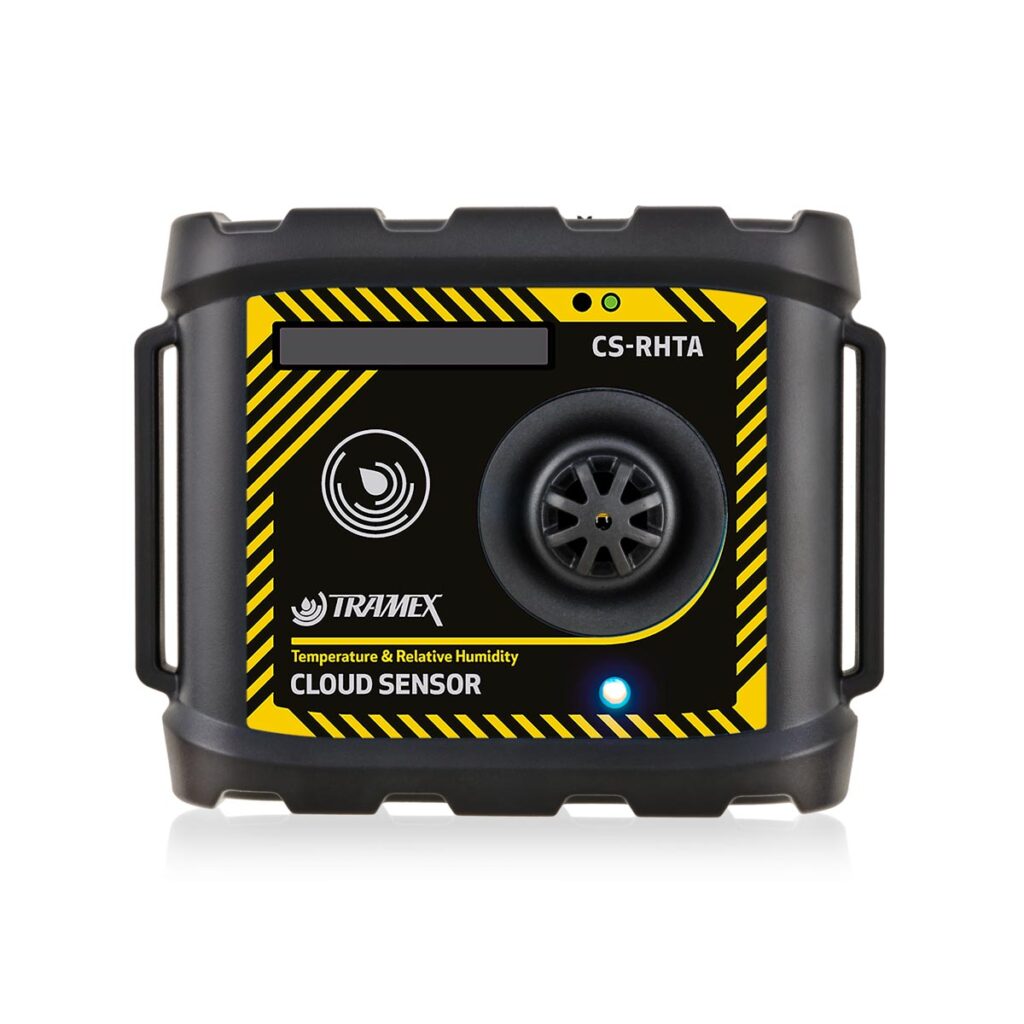

The CS-RHTA is a wireless ambient temperature and humidity sensor for use with the Tramex Remote Environmental Monitoring System (TREMS).
On-site Cloud Sensors, with long-life batteries, transmit ambient relative humidity, temperature (deg C and deg F), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station, enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
CS-RHTA Sensors are compatible with the CTP contact temperature probe. Sensors can be easily registered by scanning the QR code on the back of the instrument and clicking Register in your Cloud account.
Compatible Systems
- Tramex Remote Environmental Monitoring System (TREMS) via the Tramex Cloud Station (CST-4G)
- Included in TREMS-5 and TREMS-10 kits and AP-TREMS-5 and AP-TREMS-10 accessory packs
- Compatible with the CTP contact temperature probe
Specifications
Temperature Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°C, range -20°C to 70°C (±0.1°F, range -4°F to 158°F) |
| Range | -20°C to 70°C (-4°F to 158°F) |
| Sensor Protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.03°C (0.04°F) per year |
Relative Humidity Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±1.5%RH range 0% to 80%RH, ±2.0%RH range 80% to 99%RH (at 25°C (77°F)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor
| Attribute | Value |
|---|---|
| Transmission Range | Over 3km line-of-sight |
| Communication Frequency | Multiple readings per hour |
| Identification | Items individually coded for ease of install and logging identification |
| Size | 100mm x 90mm x 35mm (3.94″ x 3.54″ x 1.38″) |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built-in long-life CR123A battery |
| Included | Wall mounting |
