Description

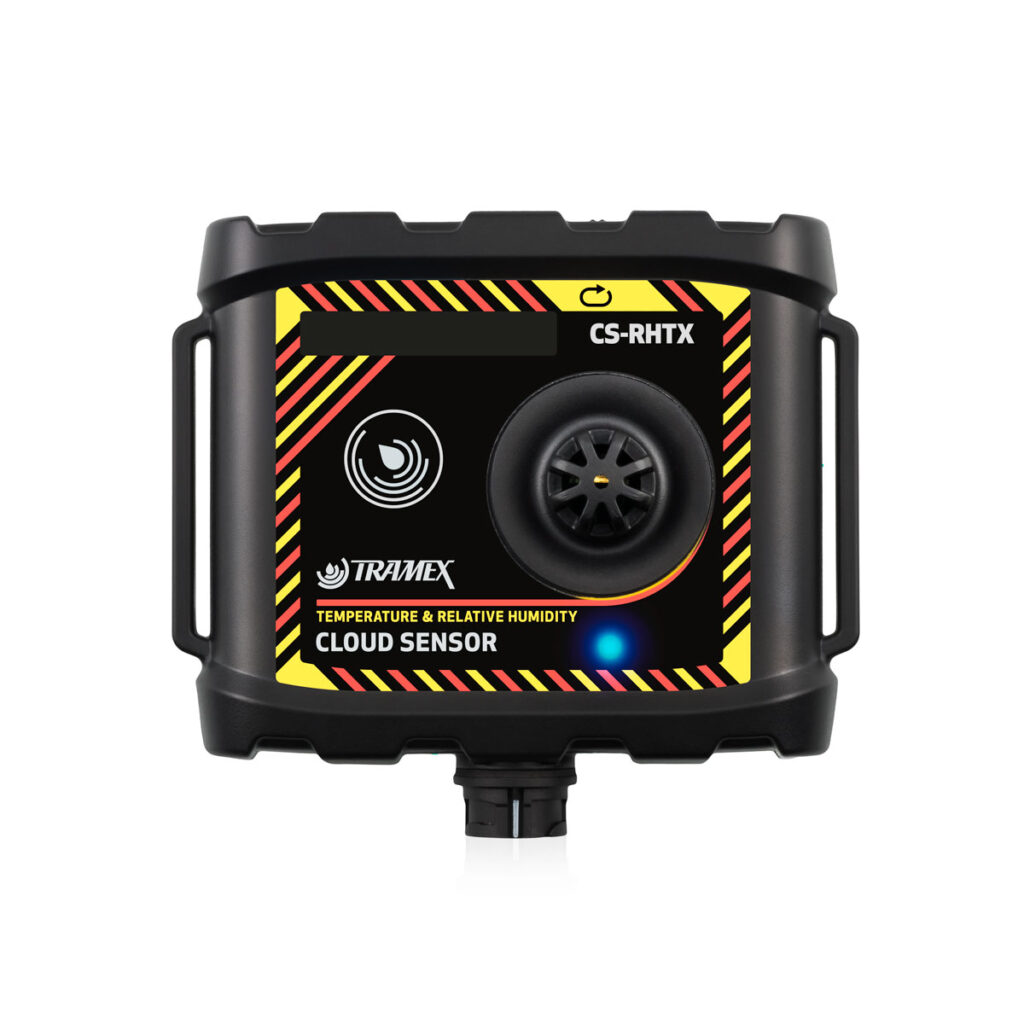

The CS-RHTX (Cloud Sensor Xtra) is a wireless ambient and probe temperature and humidity sensor for use with the Tramex Remote Environmental Monitoring System (TREMS).
On-site Cloud Sensors, with long-life batteries, transmit ambient and in-situ relative humidity, temperature (deg C and deg F), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station, enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
CS-RHTX Sensors are compatible with the range of Tramex relative humidity probes, the Tramex TREMS-WME/MC pin probes, and the CTP-WME contact temperature probe. Sensors can be easily registered by scanning the QR code on the back of the instrument and clicking Register in your Cloud account.
Features
- Wireless transmission of ambient and in-situ relative humidity, temperature, dew point and grains per pound / grams per kilo readings
- Probe input for external Tramex RH probes, WME/MC pin probes and the CTP-WME contact temperature probe
- Long-life built-in CR123A battery
- Over 3km line-of-sight transmission range
- Multiple readings per hour
- Individually coded for easy installation and logging identification
- QR code registration to the Tramex Cloud account
- Wall mounting included
Compatible Systems
- Tramex Remote Environmental Monitoring System (TREMS) via the Tramex Cloud Station (CST-4G)
- Included in TREMS-Xtra and TREMS-WME/MC kits and the AP-TREMS-Xtra and AP-TREMS-WME/MC accessory packs
- Compatible with Tramex relative humidity probes (RHP-SW-B, RHP-NW-B, RHP-SNW-B), CS-WME pin probes and the CTP-WME contact temperature probe
Specifications
Temperature Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°C, range -20°C to 70°C (±0.1°F, range -4°F to 158°F) |
| Range | -20°C to 70°C (-4°F to 158°F) |
| Sensor Protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.03°C (0.04°F) per year |
Relative Humidity Sensor
| Attribute | Value |
|---|---|
| Accuracy | ±1.5%RH range 0% to 80%RH, ±2.0%RH range 80% to 99%RH (at 25°C (77°F)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor
| Attribute | Value |
|---|---|
| Transmission Range | Over 3km line-of-sight |
| Communication Frequency | Multiple readings per hour |
| Identification | Items individually coded for ease of install and logging identification |
| Size | 100mm x 90mm x 35mm (3.94″ x 3.54″ x 1.38″) |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built-in long-life CR123A battery |
| Included | Wall mounting |
