Description
The Tramex Concrete Coatings Inspector Kit (CCIK) is an excellent kit for checking moisture in concrete, providing instant, non-destructive, quantitative moisture content testing of concrete floors and ambient conditions. It is the ideal non-destructive test kit for monitoring the most crucial information at the time of coating application, allowing a final moisture checkup before applying the coating to help ensure a successful job completion.
The Tramex CMEX5 digital moisture meter allows non-destructive quantitative testing of concrete using gravimetric testing as a baseline, and comparative testing per ASTM F2659. Non-destructive testing of the top 3/4″ of the slab is most critical when applying coatings. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the Tramex CMEX5 built-in hygrometer.
Bluetooth connectivity to the Tramex Meters App allows visualization of readings and data reporting to mobile devices, GeoTagging of test results, creating, saving and sharing photos, reports and charts, and viewing the meter screen on a phone when extending to hard to reach places.
The kit comes with an extension handle in a heavy-duty Tramex travel case.
Features
- Instant, non-destructive, quantitative concrete moisture testing
- Ambient relative humidity, temperature, dew point and grains per pound readings
- Concrete moisture content 0 to 6.9%
- Gypsum reference scale 0 to 12
- CM equivalent scales: anhydrite 0 to 2.7, concrete 0 to 4.3
- Wood moisture content 5 to 30% (with optional wood pin probes)
- Comparative reference scale 0 to 100
- Comparative testing per ASTM F2659
- Infrared surface thermometer for surface temperature and dew point assessment
- Extension handle included
- Free accompanying Tramex Meters App with Bluetooth connectivity
Applications
- Verifying moisture levels in concrete before applying coatings
- Non-destructive testing of the critical top 3/4″ of concrete slabs
- Ambient and dew point condition assessment at the time of application
- Concrete coatings inspection and reporting

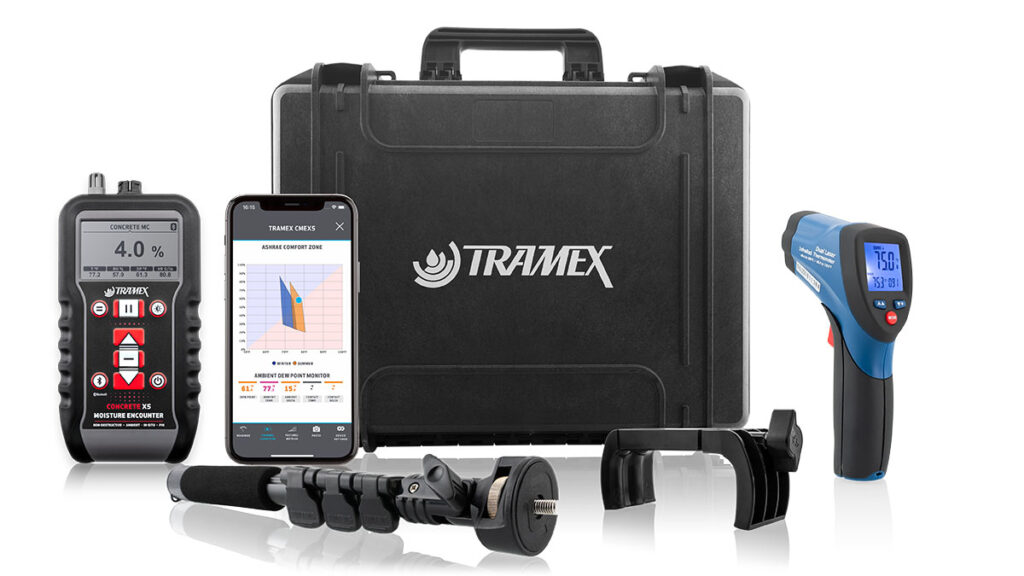

Kit Contents
- Concrete Moisture Encounter X5 (CMEX5)
- Infrared thermometer (IRT2)
- Free Tramex Meters App for Android and iOS (phone not included)
- Extension handle
- Heavy-duty Tramex travel case
Specifications
Concrete Moisture Encounter X5 (CMEX5) Measuring Range
| Parameter | Range |
|---|---|
| Depth of penetration in concrete | approx. 3/4″ (20mm) |
| Moisture content for concrete | 0 to 6.9% |
| Comparative for gypsum floor screed | 0 to 12 |
| CM equivalent anhydrite / concrete | 0 to 2.7 / 0 to 4.3 |
| Reference scale | 0 to 100 |
| Relative humidity (with optional Hygro-i2 probe) | 0 to 99%RH, ±2% at 25°C (77°F) |
| Moisture content for wood (with optional wood pin probes) | 5 to 30% |
Infrared Thermometer IRT2: temperature range -58°F to 1202°F (-50°C to 650°C); distance to spot ratio 12:1; response time 150ms; adjustable emissivity 0.10 to 1.0; Class 2 laser; 9V battery.
Kit Specification
| Parameter | Value |
|---|---|
| Size | 17.1″ x 14.2″ x 5.5″ (43.5cm x 36cm x 14cm) |
| Weight | 6.8 lbs (3.1kg) |
| Power | 2 x AA batteries, 1 x 9 volt PP3 battery |
Standards Referenced
- ASTM F2659 (comparative moisture testing of concrete)
