The Tramex Flooring Master Kit X is the topmost kit, including the top of the range digital meters for instant, non-destructive quantitative moisture content testing of concrete and wood flooring, as well as measuring and monitoring of RH and dew point testing of concrete and ambient conditions, both pre and post application of floor covering materials, with Bluetooth and the accompanying Tramex Meters App.

It features the Tramex CMEX5 digital concrete moisture meter for non-destructive quantitative moisture testing of concrete using gravimetric testing as a baseline, comparative testing per ASTM F2659, and ambient conditions. The CMEX5 incorporates bayonet plug-in heavy-duty pin probes measuring moisture content in wood or WME in other flooring materials, and also incorporates reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete as per ASTM F2170. The Hygro-i2 RH probes can be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in situ and in the environment.

The Tramex MEX5 allows for moisture testing of wood, includes a shallow-depth mode for measurement up to 3/8 inch (9 mm) and the elimination of substrate influence on readings when needed, and allows for SG specific gravity adjustment, wood species selection and a built-in infrared surface thermometer with pin temperature correction for wood moisture content precision.

The kit comes with an extension handle in a heavy-duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualisation of readings and data reporting to mobile devices, GeoTagging of test results, creating, saving and sharing photos, reports and charts, and seeing your meter screen on your phone when extending to hard to reach places.

Features

• Top of the range flooring inspection kit with two digital 5-series meters
• Non-destructive quantitative concrete moisture testing (0 to 6.9%) with the CMEX5
• Gypsum reference 0 to 12; CM Equivalent concrete 0 to 4.3 and anhydrite 0 to 2.7
• MEX5 with dual-depth measurement, wood species selection, SG adjustment, built-in infrared surface thermometer and pin temperature correction
• Wood moisture content 0 to 30% non-destructive, 6 to approx. 50% with pins; pin drywall moisture content 0 to 8.5%
• In-situ RH testing of concrete per ASTM F2170 with three reusable Hygro-i2 probes
• Feedback Datalogger DL-RHTX for live readings and time logging of RH, temperature and dew point
• Temperature, relative humidity, dew point, grains per pound and enthalpy readings
• Infrared surface thermometer, hammer-action pin electrode and heavy-duty wood pin probe
• Extension handle included
• Bluetooth connectivity and free accompanying Tramex Meters App

Applications

• Surveying RH and moisture conditions of concrete slabs and wooden floor coverings
• Pre and post application testing of floor covering materials
• ASTM F2170 and ASTM F2659 compliance testing
• Monitoring of drying conditions and ambient environments

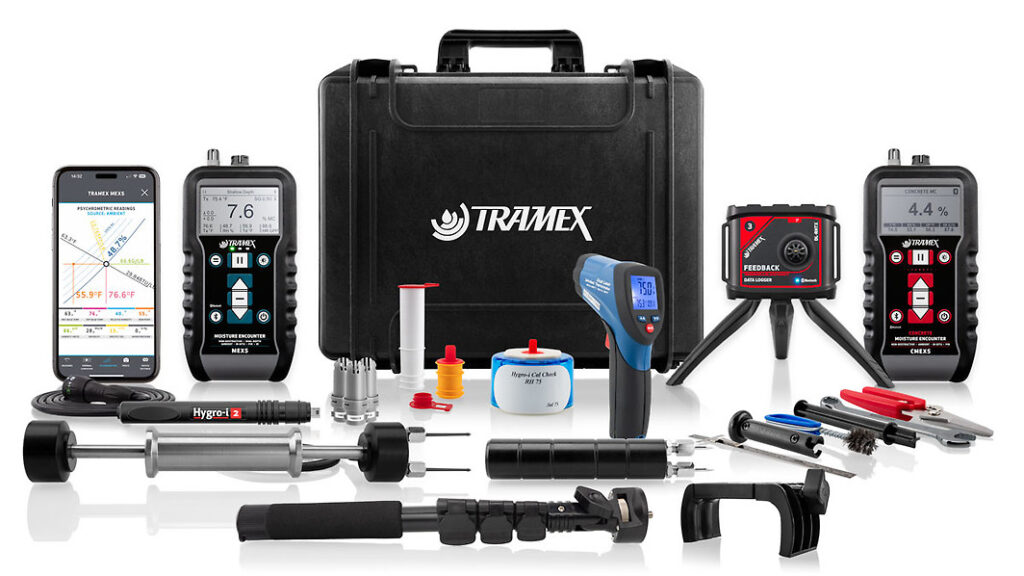

Kit Contents

1. Concrete Moisture Encounter CMEX5
2. Moisture Encounter MEX5
3. Feedback Datalogger – DL-RHTX
4. 3 x Hygro-i2 Relative Humidity probes
5. Heavy-duty Pin-type Wood Probe
6. Hammer-action pin-type electrode
7. Infrared Thermometer (IRT2)
8. Calibration Check Salt
9. Hole liners
10. Extension Handle
11. Free Tramex Meters App for Android and iOS (phone not included)
12. Heavy-duty Tramex travel case

Specifications

CMEX5 measuring range:

• Depth of penetration in concrete: approx. 3/4 inch (20 mm)
• Moisture content for concrete: 0 to 6.9%
• Comparative for gypsum floor screed: 0 to 12
• CM Equivalent Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
• Reference scale: 0 to 100
• Relative humidity: 0 to 99% (with Hygro-i2 probe, accuracy +/- 2% at 25 C / 77 F)
• Moisture content for wood (with wood pin probes): 5 to 30%

MEX5 measuring range:

• NDT moisture content for wood: 0 to 30% MC
• NDT comparative for building materials: 0 to 100
• Pin % MC wood: 6 to approx. 50% MC
• Pin % MC drywall: 0 to 8.5% MC
• Relative humidity: 0 to 99% (with optional Hygro-i2 probe, accuracy +/- 2% at 25 C / 77 F)

Feedback Datalogger DL-RHTX:

• Memory: 100,000 data point entries
• Logging rate: adjustable between 10 minutes and 1 hour
• Transmission range: up to 50 m (165 ft) line of sight
• Bluetooth: BLE Bluetooth Low Energy 4.2 compliant
• RH sensor: 0 to 100% RH, accuracy +/- 1.5% RH (0 to 80% RH), +/- 2.0% RH (80 to 99% RH)
• Temperature sensor: -4 F to 158 F (-20 C to 70 C), accuracy +/- 0.1 C

Infrared Thermometer IRT2:

• Temperature range: -58 F to 1202 F (-50 to 650 C)
• Distance to spot ratio: 12:1
• Response time: 150 ms
• Class 2 laser product, 9 V battery

Kit specifications:

• Size: 20.5 x 18.9 x 5.9 inches (52 x 48 x 15 cm)
• Weight: 13.2 lbs (6 kg)
• Power: 5 x AA batteries, 1 x 9 volt PP3 battery

Standards Referenced

• ASTM F2170 (in-situ relative humidity testing of concrete)
• ASTM F2659 (comparative non-destructive testing)
