The Tramex FIK is the complete kit for instant, non-destructive quantitative moisture testing of concrete and wood flooring, as well as RH and dew point testing of concrete and ambient conditions, with Bluetooth and the accompanying Tramex Meters App.

The Tramex CMEX5 digital moisture meter allows for non-destructive quantitative testing of concrete using gravimetric testing as a baseline and comparative testing per ASTM F2659. Plug-in reusable Tramex Hygro-i2 RH probes allow for performing the ASTM F2170 test for relative humidity readings in concrete slabs.

The Tramex heavy-duty wood pin probe measures the moisture content of wood. An infrared surface thermometer gives surface temperature and dew point conditions when used in conjunction with the CMEX5 hygrometer.

The kit comes with an extension handle in a heavy-duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualisation of readings and data reporting to mobile devices, GeoTagging of test results, creating, saving and sharing photos, reports and charts, and seeing your meter screen on your phone when extending to hard to reach places.

Features

• Non-destructive quantitative moisture testing of concrete and wood flooring
• Concrete moisture content range 0 to 6.9%
• Gypsum reference 0 to 12; CM Equivalent concrete 0 to 4.3 and anhydrite 0 to 2.7
• Wood moisture content 5 to 30% and wood moisture equivalent 0 to 100
• Ambient and in-situ relative humidity, temperature, dew point and grains per pound readings
• In-situ RH testing per ASTM F2170 with reusable Hygro-i2 probe
• Infrared surface thermometer for surface temperature and dew point conditions
• Extension handle included
• Bluetooth connectivity and free accompanying Tramex Meters App

Applications

• Moisture inspection of concrete slabs, wooden floors and surrounding ambient conditions
• Flooring inspection and pre-installation compliance testing (ASTM F2170, ASTM F2659)
• Wood flooring moisture content checks

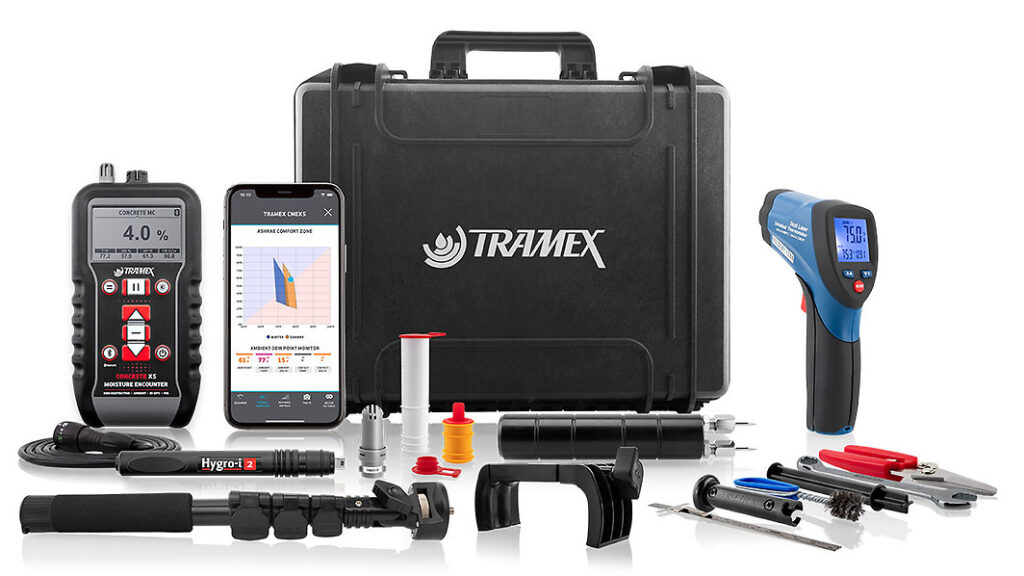

Kit Contents

1. Concrete Moisture Encounter X5 – CMEX5
2. 1 x Hygro-i2 Relative Humidity probe
3. Heavy-duty Pin-type Wood Probe
4. Infrared Thermometer (IRT2)
5. Hole liners
6. Extension Handle
7. Free Tramex Meters App for Android and iOS (phone not included)
8. Heavy-duty Tramex travel case

Specifications

CMEX5 measuring range:

• Depth of penetration in concrete: approx. 3/4 inch (20 mm)
• Moisture content for concrete: 0 to 6.9%
• Comparative for gypsum floor screed: 0 to 12
• CM Equivalent Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
• Reference scale: 0 to 100
• Relative humidity: 0 to 99% (with Hygro-i2 probe, accuracy +/- 2% at 25 C / 77 F)
• Moisture content for wood (with wood pin probes): 5 to 30%

Infrared Thermometer IRT2:

• Temperature range: -58 F to 1202 F (-50 to 650 C)
• Distance to spot ratio: 12:1
• Response time: 150 ms
• Emissivity: digitally adjustable from 0.10 to 1.0
• Diode laser output: <1 mW, wavelength 630 to 670 nm, Class 2 laser product
• Power supply: 9 V battery

Kit specifications:

• Size: 17.1 x 14.2 x 5.5 inches (43.5 x 36 x 14 cm)
• Weight: 8.6 lbs (3.9 kg)
• Power: 2 x AA batteries, 1 x 9 volt PP3 battery

Standards Referenced

• ASTM F2170 (in-situ relative humidity testing of concrete)
• ASTM F2659 (comparative non-destructive testing)
