Description
The Tramex Remote Environmental Monitoring System WME/MC allows for moisture content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard. Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions.
Designed and developed by Tramex, this state of the art technology can notify users, allowing for quick response to in-situ and environmental changes.
The TREMS-WME/MC kit comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, and 5 external WME/MC probes. Larger system sizes (TREMS-WME/MC-25 and TREMS-WME/MC-50) scale the number of sensors and probes accordingly. Multiple sensors can be used with one station and additional sensor and WME/MC probe accessory packs are available.
Registration and on-site set-up is simple using a QR code check-in procedure. The on-site sensors, with long-life batteries, transmit relative humidity, temperature (C and F), dew point, grains per pound / grams per kilo and WME/MC readings wirelessly via the Tramex Cloud Station, enabling remote monitoring of up to 200 on-site sensors on the Tramex Cloud platform.
Tramex Cloud is a secure platform to store and report moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser. There are no subscription fees and data is free with the Tramex Remote Environmental Monitoring System WME/MC.
Features
- Remote in-situ monitoring of wood moisture content (%MC) and Wood Moisture Equivalent (WME) in building materials
- WME reference scale 0 to 100
- Ambient relative humidity, temperature, dew point and grains per pound / grams per kilo monitoring
- Up to 200 on-site sensors can be monitored via one Tramex Cloud platform account
- Sensor transmission range up to 2 miles line of sight, multiple readings per hour
- Simple QR code check-in registration and on-site set-up
- Secure monitoring software with WPA2-PSK encryption and no unwarranted telemetry or tracking
- Notifications of adverse conditions; monitor status from any browser
- No subscription fees; data stored free of charge for 2 years
Applications
- Remote moisture monitoring of wood, wood-based products, drywall and plasterboard
- Monitoring drying progress in water damage restoration
- Ambient condition monitoring in buildings

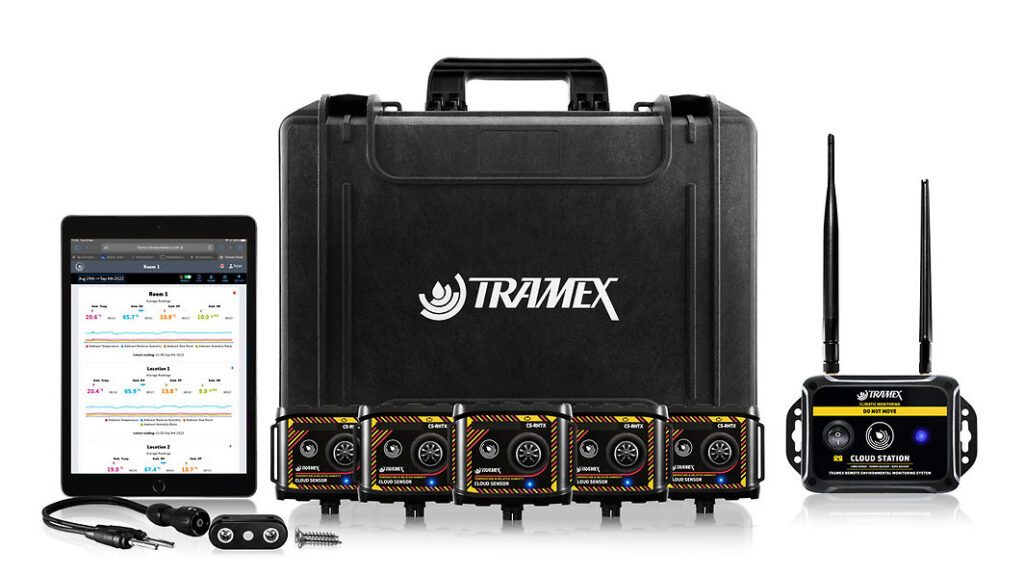

Kit Contents (TREMS-WME/MC)
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x WME/MC electrode probes
- 1 x Tramex Cloud Station
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud software monitoring platform (tablet not included)
- Antennae for Cloud Station
Specifications
Cloud Xtra Sensor – Temperature
| Attribute | Value |
|---|---|
| Accuracy | ±0.1°F over the range -4°F to 158°F (±0.1°C over -20°C to 70°C) |
| Range | -4°F to 158°F (-20°C to 70°C) |
| Sensor protection | PTFE film protects sensor opening from water and dust |
| Drift | <0.04°F (0.03°C) per year |
Cloud Xtra Sensor – Relative Humidity
| Attribute | Value |
|---|---|
| Accuracy | ±1.5% RH from 0 to 80% RH, ±2.0% RH from 80 to 99% RH (at 77°F / 25°C) |
| Range | 0 to 100% RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25% RH per year |
Sensor
| Attribute | Value |
|---|---|
| Transmission range | Up to 2 miles line-of-sight |
| Communication frequency | Multiple readings per hour |
| Identification | Items individually coded for ease of install and logging identification |
| Size | 3.94″ x 3.54″ x 1.38″ (100mm x 90mm x 35mm) |
| Weight | 3.53 oz (100g) |
| Construction | ABS enclosure |
| Power | Built-in long-life CR123A battery |
| Included | Wall mounting |
WME/MC Probe
| Attribute | Value |
|---|---|
| Wood Moisture Equivalent (WME/MC) | 0 to 100 |
Tramex Cloud Station
| Attribute | Value |
|---|---|
| Frequency | Region specific frequency available |
| Security | WPA2-PSK encryption, no unwarranted telemetry or tracking |
| Size | 5.9″ x 3.6″ x 2″ (150mm x 90mm x 50mm) |
| Weight | 9.9 oz (280g) |
| Power | Universal AC power adapter |
| Construction | Wall-mountable ABS enclosure |
Data is stored free of charge for a period of 2 years, after which, following the Tramex data retention policy, it must be downloaded.
Kit Specifications (TREMS-WME/MC)
| Attribute | Value |
|---|---|
| Size | 17.1″ x 14.2″ x 5.5″ (43.5cm x 36cm x 14cm) |
| Weight | 7.6 lbs (3.56kg) |
| Power | 5 x CR123A 3-volt batteries (included) |
