Description
The Tramex Flooring Installation Quick Check Kit (IQCK) is a compact kit for performing the Installation Quick Check test: instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew point conditions at the time of installation. It helps eliminate dew point issues when installing a floor and avoid moisture related floor failures.
Even if pre-installation tests have been performed, checking the %MC and ambient dew point conditions at the time of installation is crucial to ensure a successful installation. The Tramex CME5 moisture meter allows non-destructive quantitative testing of concrete moisture content using gravimetric testing as a baseline. The Infrared Thermometer and Dew Point Detector provides surface temperature readings and ambient temperature and dew point conditions to avoid condensation related issues and floor failures at the time of installation.
The Tramex Meters App allows data reporting to mobile devices, GeoTagging of test results, and creating, saving and sharing photos, reports and charts.
The kit comes in a Tramex Easy-travel case.
Features
- Instant, non-destructive, quantitative concrete moisture testing
- Concrete moisture content scale 0 to 6%
- Gypsum reference scale 0 to 10
- Comparative reference scale 0 to 100
- Ambient relative humidity, temperature, dew point and grains per pound readings
- Surface temperature and dew point detection to avoid condensation issues
- Comparative testing per ASTM F2659
- Free accompanying Tramex Meters App
Applications
- Final quick check of moisture and RH conditions before installing a floor
- Avoiding dew point and condensation related floor failures
- Concrete floor moisture testing at the time of flooring installation

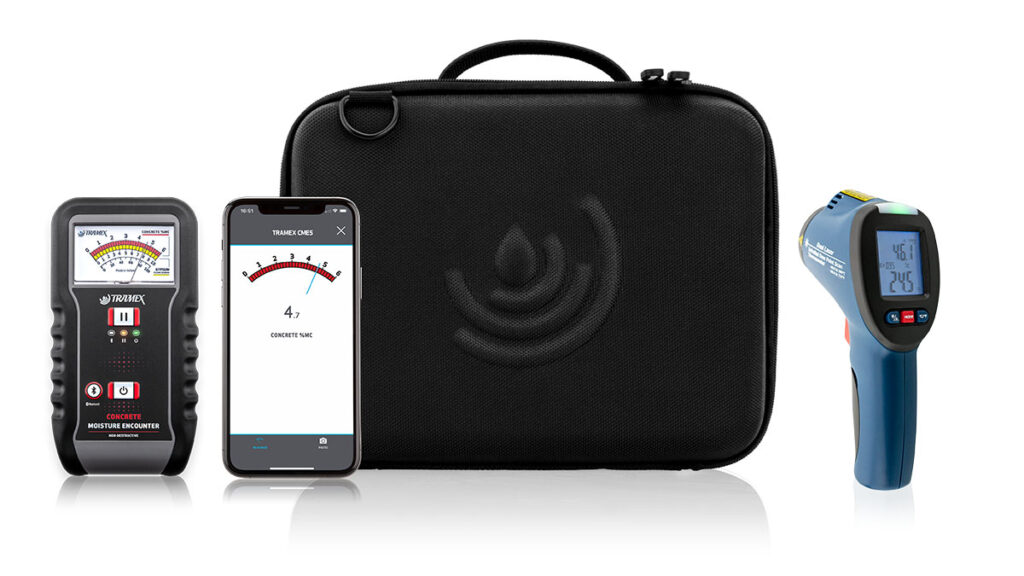

Kit Contents
- Concrete Moisture Encounter (CME5)
- Free Tramex Meters App for Android and iOS (phone not included)
- Infrared Thermometer and Dew Point Detector (IRT2DP)
- Tramex Easy-travel case
Specifications
Concrete Moisture Encounter 5 (CME5) Measuring Range
| Parameter | Range |
|---|---|
| Depth of penetration | approx. 3/4″ (20mm) |
| Moisture content for concrete | 0 to 6% |
| Comparative for gypsum floor screed | 0 to 10 |
| Reference scale | 0 to 100 |
Infrared Thermometer and Dew Point Detector (IRT2DP) Measuring Range
| Parameter | Value |
|---|---|
| Temperature range | -58°F to 716°F (-50°C to 380°C) |
| Display resolution | 0.1 |
| Emissivity | Fixed at 0.95 |
| Temperature accuracy | -58°F to 32°F (-50°C to 20°C): ±3.5°C; 32°F to 716°F (20°C to 380°C): ±1.5°C |
| Wavelength range | 8 to 14µm |
| Humidity range | 0 to 100% RH |
| Humidity accuracy | ±3.5% (20% to 80%) |
| Dew point temperature | -22°F to 212°F (-30°C to 100°C) |
| Distance to spot ratio | 20:1 |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Storage temperature | -4°F to 140°F (-10°C to 60°C) |
| Relative humidity | 10% to 90%RH operating, under 80%RH storage |
| Power supply | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
Kit Specification
| Parameter | Value |
|---|---|
| Size | 13.2″ x 9.5″ x 3.2″ (33.5cm x 24cm x 8cm) |
| Weight | 2.8 lbs (1.3kg) |
| Power | 2 x AA batteries, 1 x 9 volt PP3 battery |
Standards Referenced
- ASTM F2659 (comparative moisture testing of concrete)
