Description
The Tramex Flooring Installation Quick Check Plus Kit (IQCPK) is a compact kit for conducting the Installation Quick Check test: instant, non-destructive, quantitative moisture content testing of concrete floors and ambient dew point conditions at the time of installation. It is designed for a last minute, fast and accurate moisture and humidity test to ensure a successful floor installation.
Even if pre-installation tests have been performed, checking the %MC and ambient dew point conditions at the time of installation is crucial to ensure a successful installation. The Tramex CMEX5 digital moisture meter allows non-destructive quantitative testing of concrete moisture content using gravimetric testing as a baseline. The CMEX5 has a built-in hygrometer providing ambient relative humidity, temperature and dew point measurements. The Infrared Thermometer provides surface temperature readings for comparison with the dew point conditions, to avoid condensation related issues and floor failures at the time of installation.
The Tramex Meters App allows data reporting to mobile devices, GeoTagging of test results, and creating, saving and sharing photos, reports and charts.
The kit comes in a Tramex Easy-travel case.
Features
- Instant, non-destructive, quantitative concrete moisture testing
- Concrete moisture content 0 to 6.9%
- Gypsum reference scale 0 to 12
- CM equivalent scales: concrete 0 to 4.3, anhydrite 0 to 2.7
- Built-in hygrometer: ambient relative humidity, temperature, dew point and grains per pound
- Infrared surface thermometer for dew point comparison
- Comparative testing per ASTM F2659
- Free accompanying Tramex Meters App
Applications
- Checking concrete moisture levels before installing flooring
- Quick check procedure at the time of install
- Avoiding condensation and dew point related floor failures
- Data reporting and GeoTagged records of pre-installation checks

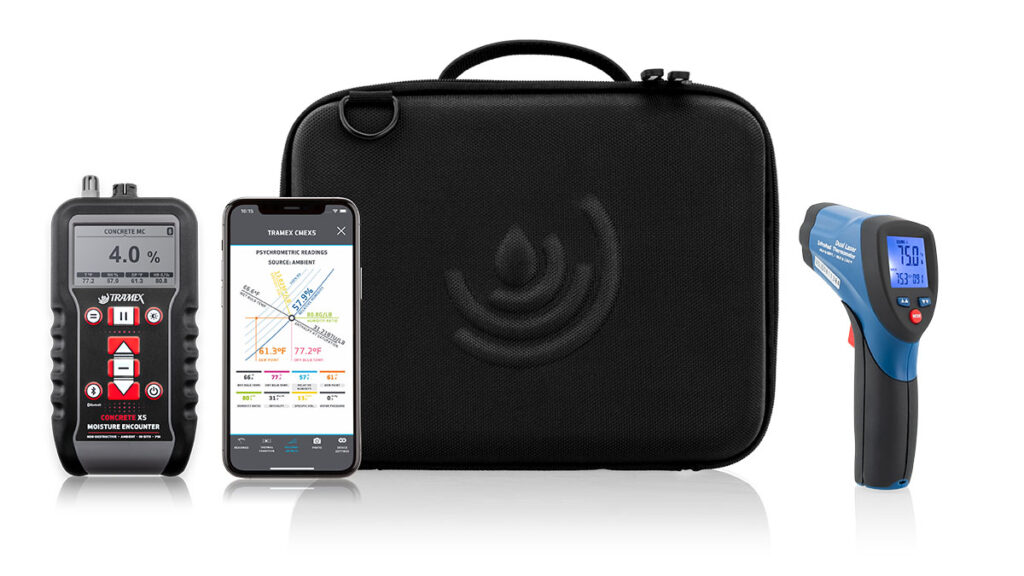

Kit Contents
- Concrete Moisture Encounter X5 (CMEX5)
- Free Tramex Meters App for Android and iOS (phone not included)
- Infrared thermometer (IRT2)
- Tramex Easy-travel case
Specifications
Concrete Moisture Encounter X5 (CMEX5) Measuring Range
| Parameter | Range |
|---|---|
| Depth of penetration in concrete | approx. 3/4″ (20mm) |
| Moisture content for concrete | 0 to 6.9% |
| Comparative for gypsum floor screed | 0 to 12 |
| CM equivalent anhydrite / concrete | 0 to 2.7 / 0 to 4.3 |
| Reference scale | 0 to 100 |
| Relative humidity (with optional Hygro-i2 probe) | 0 to 99%RH, ±2% at 25°C (77°F) |
| Moisture content for wood (with optional wood pin probes) | 5 to 30% |
Infrared Thermometer IRT2: temperature range -58°F to 1202°F (-50°C to 650°C); distance to spot ratio 12:1; response time 150ms; adjustable emissivity 0.10 to 1.0; Class 2 laser; 9V battery.
Kit Specification
| Parameter | Value |
|---|---|
| Size | 13.8″ x 9.1″ x 3.5″ (35cm x 23cm x 9cm) |
| Weight | 2.8 lbs (1.3kg) |
| Power | 2 x AA batteries, 1 x 9 volt PP3 battery |
Standards Referenced
- ASTM F2659 (comparative moisture testing of concrete)
