The Tramex Water Damage Restoration Inspector Kit is the complete kit for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.

For walls and floors, the kit features the Tramex ME5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The dual-depth feature allows for the elimination of substrate influence on readings.

For concrete, the Tramex CMEX5 digital concrete moisture meter allows quantitative moisture content measurement using gravimetric testing as a baseline, comparative testing of concrete and ambient conditions measurement. The CMEX5 incorporates a bayonet plug-in port for the heavy-duty pin probe to measure moisture content in wood or WME in other building materials, as well as relative humidity readings with the reusable Tramex Hygro-i2 RH probe.

For ambient conditions, the Tramex Feedback Datalogger gives live readings and time logs relative humidity, temperature and dew point in the environment and in materials and air spaces with the plug-in relative humidity probe. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer.

Bluetooth connectivity to the Tramex Meters App allows visualization of readings, moisture mapping and data reporting to mobile devices. Users can GeoTag test results, create, save and share photos, reports and charts, and view the meter screen on a phone when extending to hard to reach places.

The kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.

Features

• Non-destructive moisture testing of building materials
• Concrete moisture content 0 to 6.9%
• CM equivalent scales: concrete 0 to 4.3, anhydrite 0 to 2.7
• Gypsum reference scale 0 to 12
• Wood moisture content 5 to 30%
• Wood moisture equivalent (WME) reference 0 to 100
• Ambient relative humidity, temperature, dew point and grains per pound readings
• 4mm narrow wand RH probe readings (RH, temperature, dew point, gr/lb)
• Free accompanying Tramex Meters App with Bluetooth connectivity
• Dual-depth measurement (ME5)
• Comparative reference scale 0 to 100
• Extension handle included
• Comparative concrete testing per ASTM F2659

Applications

• Water damage restoration inspection and monitoring of the drying process
• Moisture and relative humidity testing of buildings and building materials
• Testing concrete, wood, tiles, drywall, plaster, brick, resilient flooring, laminates and roofing
• Ambient condition monitoring and datalogging during drying
• Surface temperature and dew point assessment

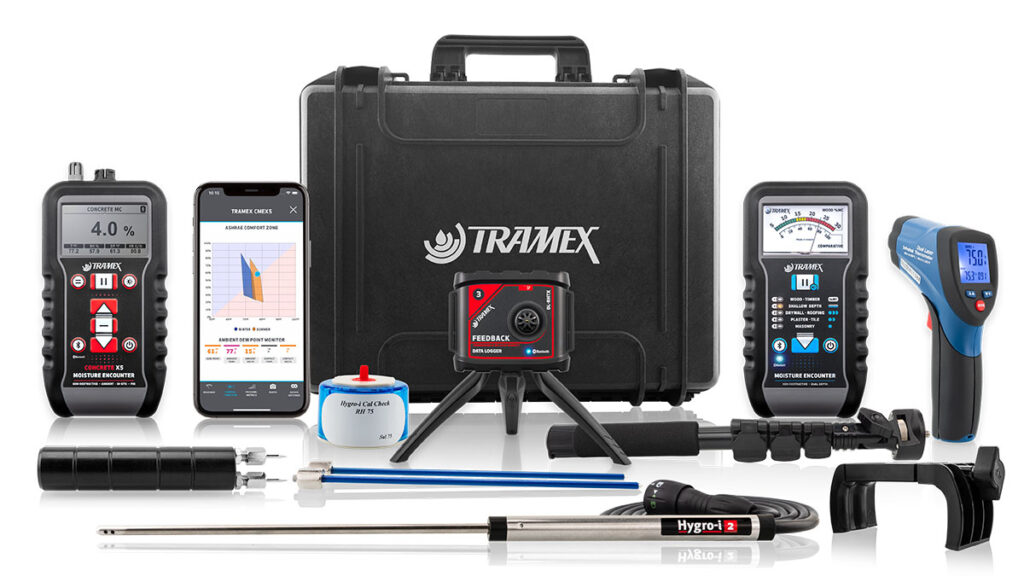

Kit Contents (TREMS-WME/MC)

1. Concrete Moisture Encounter X5 (CMEX5)
2. Moisture Encounter 5 (ME5)
3. Feedback Datalogger (DL-RHTX)
4. Free Tramex Meters App for Android and iOS (phone not included)
5. Heavy-duty pin-type wood probe
6. 5″ (127mm) short narrow relative humidity probe
7. 7.8″ (200mm) insulated pins for in-depth penetration
8. Calibration check salts
9. Infrared thermometer (IRT2)
10. Extension handle
11.  Protective heavy-duty carrying case with die-cut foam lining

Specifications

Concrete Moisture Encounter X5 (CMEX5) Measuring Range

Moisture Encounter 5 (ME5) Measuring Range

Feedback Datalogger DL-RHTX

Relative humidity sensor: range 0 to 100%RH; accuracy ±1.5%RH (0 to 80%RH) and ±2.0%RH (80 to 99%RH) at 77°F (25°C); resolution 0.1%; drift under 0.25%RH per year.

Temperature sensor: range -4°F to 158°F (-20°C to 70°C); accuracy ±0.1°F (±0.1°C); PTFE film sensor protection; drift under 0.04°F (0.03°C) per year.

Infrared Thermometer IRT2: temperature range -58°F to 1202°F (-50°C to 650°C); distance to spot ratio 12:1; response time 150ms; adjustable emissivity 0.10 to 1.0; Class 2 laser; 9V battery.

Kit Specification

Standards Referenced

• ASTM F2659 (comparative moisture testing of concrete)
